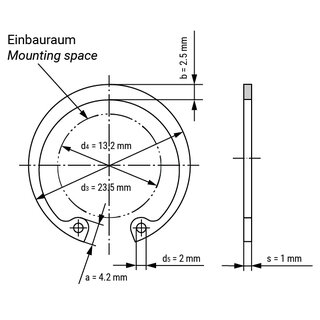

Technical Scribble
Reataining ring J22 for bore 22 mm, according to DIN472 made of spring steel
The retaining ring J22 can be used to secure rolling bearings in bores. A groove in the bore is required for mounting the retaining rings.
Technical Data
| Bore (mm): | 22 |
| Slot (mm): | 23 |
| Thickness (mm): | 1 |
| Slotwidth (mm): | 1.1 |
| Tolerance for thickness (mm): | 0/-0,06 |
| Tolerance for slot (mm): | 0,13 /0 |
| Ring Material: | Spring Steel |
| Product weight: | 0,0011 kg |
Item number: J22
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 0.85
pcs
Technical Scribble
Technical Data
| Bore (mm): | 22 |
| Slot (mm): | 23 |
| Thickness (mm): | 1 |
| Slotwidth (mm): | 1.1 |
| Tolerance for thickness (mm): | 0/-0,06 |
| Tolerance for slot (mm): | 0,13 /0 |
| Ring Material: | Spring Steel |
| Product weight: | 0,0011 kg |
