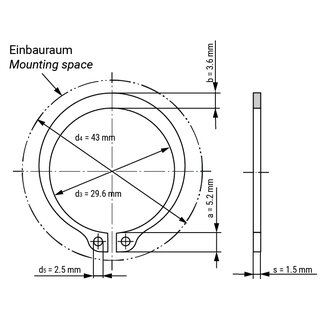

Technical Scribble
Reataining ring A32 for shaft 32 mm, according to DIN471 made of spring steel
The retaining ring A32 can be used to secure rolling bearings on shafts. A groove in the shaft is required for mounting the retaining rings.
Technical Data
| Shaft (mm): | 32 |
| Slot (mm): | 30.3 |
| Thickness (mm): | 1.5 |
| Slotwidth (mm): | 1.6 |
| Tolerance for thickness (mm): | 0/-0,06 |
| Tolerance for slot (mm): | 0 /-0,25 |
| Ring Material: | Spring Steel |
| Product weight: | 0,0035 kg |
Item number: A32
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 1.41
pcs
Technical Scribble
Technical Data
| Shaft (mm): | 32 |
| Slot (mm): | 30.3 |
| Thickness (mm): | 1.5 |
| Slotwidth (mm): | 1.6 |
| Tolerance for thickness (mm): | 0/-0,06 |
| Tolerance for slot (mm): | 0 /-0,25 |
| Ring Material: | Spring Steel |
| Product weight: | 0,0035 kg |
