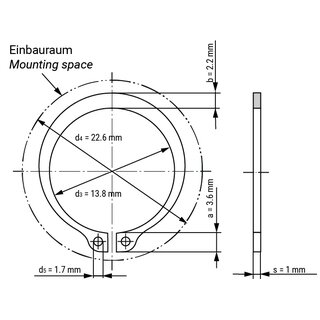

Technical Scribble
Reataining ring A15 for shaft 15 mm, according to DIN471 made of spring steel
The retaining ring A15 can be used to secure rolling bearings on shafts. A groove in the shaft is required for mounting the retaining rings.
Technical Data
| Shaft (mm): | 15 |
| Slot (mm): | 14.3 |
| Thickness (mm): | 1 |
| Slotwidth (mm): | 1.1 |
| Tolerance for thickness (mm): | 0/-0,06 |
| Tolerance for slot (mm): | 0 /-0,11 |
| Ring Material: | Spring Steel |
| Product weight: | 0,0007 kg |
Item number: A15
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 0.66
pcs
Technical Scribble
Technical Data
| Shaft (mm): | 15 |
| Slot (mm): | 14.3 |
| Thickness (mm): | 1 |
| Slotwidth (mm): | 1.1 |
| Tolerance for thickness (mm): | 0/-0,06 |
| Tolerance for slot (mm): | 0 /-0,11 |
| Ring Material: | Spring Steel |
| Product weight: | 0,0007 kg |
