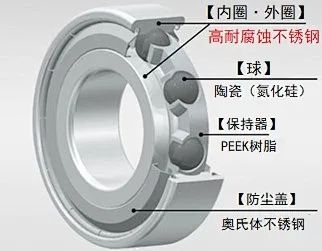

High temperature resistant outer spherical bearing

The advantages and features of high-temperature seated bearing and ball bearing units include:

1. No additional lubrication is required: all variants use graphite based high-temperature lubricant to lubricate the bearing for life. 2. Simple replacement: the overall dimensions are the same as those of standard bearings and bearing units. 3. Operating temperature can reach 350 ° C (660 ° F): its internal radial clearance and lubricant are optimized for high temperature operation. 4. Quick and easy installation and removal: The countersunk (set) screws of the inner ring make installation/removal quick and easy. 5. Protection from solid pollution: The oil deflector of dust cover (model suffix 2F) can protect the bearing from pollution. 6. Enhanced running property: the whole bearing surface is treated with manganese phosphide. 7. No color falling off: the bearing seat is coated with a high temperature resistant coating.

-2F: NBR contact seal and additional ordinary oil deflector on both sides

-VA201: Bearings for high temperature applications with pressed steel cages, manganese phosphide treated rings and rolling elements, C5 multiple radial clearance and lubricated with a polyglycol/graphite mixture

-VA228: Bearings for high temperature applications, equipped with crown graphite cages, manganese phosphide treated rings and rolling elements, with C5 times radial clearance
