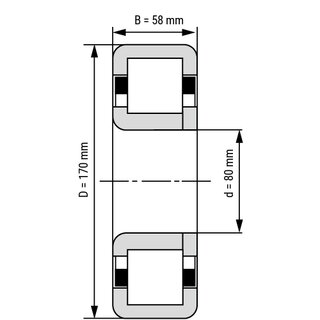

Cylindrical Roller Bearing NUP2316 E 80x170x58 mm

Due to the cylindrical rollers, the cylindrical roller bearing NUP2316-E has large contact surfaces between rolling elements and bearing rings. It is suitable for extremely high radial loads and high speeds. Main dimensions according to DIN 5412-1.

Technical Data

Inside (mm):	80
Outside (mm):	170
Width (mm):	58
Tolerance for inside (mm):	0/-0,015
Tolerance for outside (mm):	0/-0,025
Tolerance for width (mm):	0/-0,15
Design:	NUP
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	6,6000 kg

Item number: NUP2316-E

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 130.05

pcs

Technical Scribble

Technical Data

Inside (mm):	80
Outside (mm):	170
Width (mm):	58
Tolerance for inside (mm):	0/-0,015
Tolerance for outside (mm):	0/-0,025
Tolerance for width (mm):	0/-0,15
Design:	NUP
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	6,6000 kg

Technical Scribble

Cylindrical Roller Bearing NUP2316 E 80x170x58 mm

Technical Data

Technical Scribble

Technical Data

SEND INQUIRY
