Cylindrical Roller Bearing NUP2308 E 40x90x33 mm

Due to the cylindrical rollers, the cylindrical roller bearing NUP2308-E has large contact surfaces between rolling elements and bearing rings. It is suitable for extremely high radial loads and high speeds. Main dimensions according to DIN 5412-1.

Technical Data

Inside (mm):	40
Outside (mm):	90
Width (mm):	33
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,015
Tolerance for width (mm):	0/-0,12
Design:	NUP
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,9800 kg

Item number: NUP2308-E

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 26.80

pcs

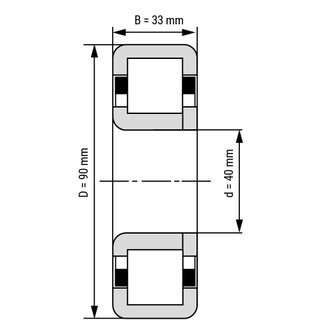

Technical Scribble
