Cylindrical Roller Bearing NUP2307 E 35x80x31 mm

Due to the cylindrical rollers, the cylindrical roller bearing NUP2307-E has large contact surfaces between rolling elements and bearing rings. It is suitable for extremely high radial loads and high speeds. Main dimensions according to DIN 5412-1.

Technical Data

Inside (mm):	35
Outside (mm):	80
Width (mm):	31
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Design:	NUP
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,7500 kg

Item number: NUP2307-E

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 21.64

pcs

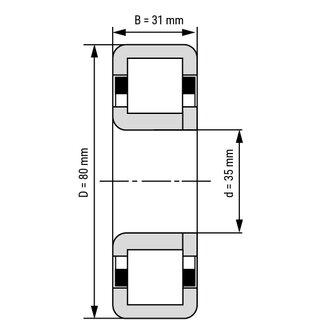

Technical Scribble

Technical Data

Inside (mm):	35
Outside (mm):	80
Width (mm):	31
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Design:	NUP
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,7500 kg

Technical Scribble

Cylindrical Roller Bearing NUP2307 E 35x80x31 mm

Technical Data

Technical Scribble

Technical Data
