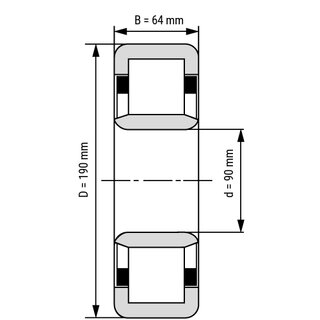

Cylindrical Roller Bearing NU2318 E M 90x190x64 mm

Due to the cylindrical rollers, the cylindrical roller bearing NU2318-E-M has large contact surfaces between rolling elements and bearing rings. It is suitable for extremely high radial loads and high speeds. Main dimensions according to DIN 5412-1.

Technical Data

Inside (mm):	90
Outside (mm):	190
Width (mm):	64
Tolerance for inside (mm):	0/-0,02
Tolerance for outside (mm):	0/-0,03
Tolerance for width (mm):	0/-0,2
Design:	NU
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Brass
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	8,1500 kg

Item number: NU2318-E-M

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day
