Cylindrical Roller Bearing NU2309 E 45x100x36 mm

Due to the cylindrical rollers, the cylindrical roller bearing NU2309-E has large contact surfaces between rolling elements and bearing rings. It is suitable for extremely high radial loads and high speeds. Main dimensions according to DIN 5412-1.

Technical Data

Inside (mm):	45
Outside (mm):	100
Width (mm):	36
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,015
Tolerance for width (mm):	0/-0,12
Design:	NU
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	1,3500 kg

Item number: NU2309-E

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 27.86

pcs

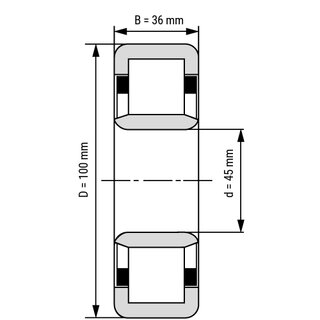

Technical Scribble
