Cylindrical Roller Bearing NU2215 E M 75x130x31 mm

Due to the cylindrical rollers, the cylindrical roller bearing NU2215-E-M has large contact surfaces between rolling elements and bearing rings. It is suitable for high radial loads and high speeds. Main dimensions according to DIN 5412-1.

Technical Data

Inside (mm):	75
Outside (mm):	130
Width (mm):	31
Tolerance for inside (mm):	0/-0,015
Tolerance for outside (mm):	0/-0,018
Tolerance for width (mm):	0/-0,15
Design:	NU
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Brass
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	1,6500 kg

Item number: NU2215-E-M

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 84.21

pcs

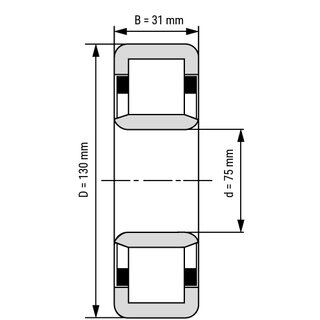

Technical Scribble

Technical Data

Inside (mm):	75
Outside (mm):	130
Width (mm):	31
Tolerance for inside (mm):	0/-0,015
Tolerance for outside (mm):	0/-0,018
Tolerance for width (mm):	0/-0,15
Design:	NU
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Brass
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	1,6500 kg

Technical Scribble

Cylindrical Roller Bearing NU2215 E M 75x130x31 mm

Technical Data

Technical Scribble

Technical Data
