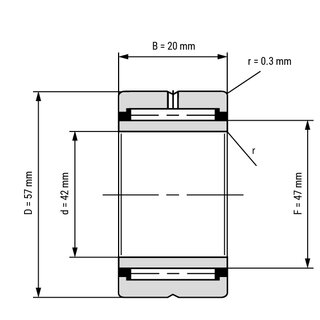

Needle Roller Bearing with Inner Ring NKI42/20 42x57x20 mm

The needle bearing NKI42/20 has thin cylinders as rolling elements and can absorb very high radial forces with its massive bearing rings. It is suitable for space-saving installation.

Technical Data

Inside (mm):	42
Outside (mm):	57
Width (mm):	20
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Ring Material:	Rolling bearing steel
Inner Ring:	yes
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Rows of Rolling Elements:	single row
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,1480 kg

Item number: NKI42/20

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 10.08

pcs

Technical Scribble

Technical Data

Inside (mm):	42
Outside (mm):	57
Width (mm):	20
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Ring Material:	Rolling bearing steel
Inner Ring:	yes
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Rows of Rolling Elements:	single row
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,1480 kg

Technical Scribble

Needle Roller Bearing with Inner Ring NKI42/20 42x57x20 mm

Technical Data

Technical Scribble

Technical Data

SEND INQUIRY
