Cylindrical Roller Bearing NJ2319 E 95x200x67 mm

Due to the cylindrical rollers, the cylindrical roller bearing NJ2319-E has large contact surfaces between rolling elements and bearing rings. It is suitable for extremely high radial loads and high speeds. Main dimensions according to DIN 5412-1.

Technical Data

Inside (mm):	95
Outside (mm):	200
Width (mm):	67
Tolerance for inside (mm):	0/-0,02
Tolerance for outside (mm):	0/-0,03
Tolerance for width (mm):	0/-0,2
Design:	NJ
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	10,7000 kg

Item number: NJ2319-E

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 199.76

pcs

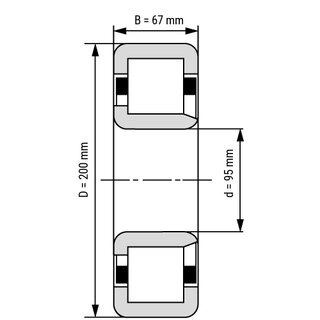

Technical Scribble
