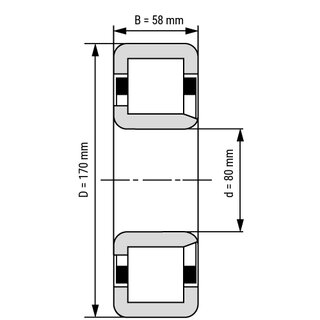

Cylindrical Roller Bearing NJ2316 E 80x170x58 mm

Due to the cylindrical rollers, the cylindrical roller bearing NJ2316-E has large contact surfaces between rolling elements and bearing rings. It is suitable for extremely high radial loads and high speeds. Main dimensions according to DIN 5412-1.

Technical Data

Inside (mm):	80
Outside (mm):	170
Width (mm):	58
Tolerance for inside (mm):	0/-0,015
Tolerance for outside (mm):	0/-0,025
Tolerance for width (mm):	0/-0,15
Design:	NJ
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	6,6000 kg

Item number: NJ2316-E

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 120.81

pcs
