Cylindrical Roller Bearing NJ2310 E M 50x110x40 mm

Due to the cylindrical rollers, the cylindrical roller bearing NJ2310-E-M has large contact surfaces between rolling elements and bearing rings. It is suitable for extremely high radial loads and high speeds. Main dimensions according to DIN 5412-1.

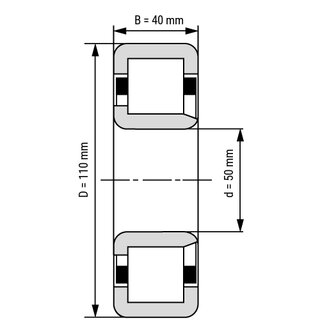

Technical Data

Inside (mm):	50
Outside (mm):	110
Width (mm):	40
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,015
Tolerance for width (mm):	0/-0,12
Design:	NJ
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Brass
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	1,8000 kg

Item number: NJ2310-E-M

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day
