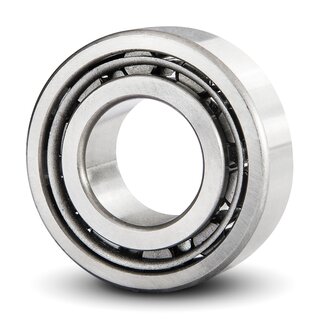

Cylindrical Roller Bearing NJ2208 E 40x80x23 mm

Due to the cylindrical rollers, the cylindrical roller bearing NJ2208-E has large contact surfaces between rolling elements and bearing rings. It is suitable for high radial loads and high speeds. Main dimensions according to DIN 5412-1.

Technical Data

Inside (mm):	40
Outside (mm):	80
Width (mm):	23
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Design:	NJ
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,5500 kg

Item number: NJ2208-E

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 14.37

pcs

Technical Scribble

Technical Data

Inside (mm):	40
Outside (mm):	80
Width (mm):	23
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Design:	NJ
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,5500 kg

Technical Scribble

Cylindrical Roller Bearing NJ2208 E 40x80x23 mm

Technical Data

Technical Scribble

Technical Data

SEND INQUIRY
