Technical Scribble

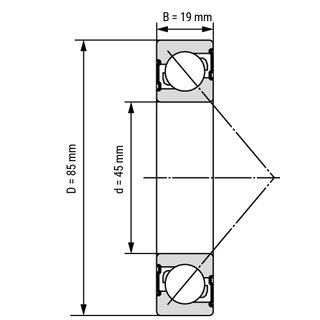

Angular Ball Bearing 7209 B open TN 45x85x19 mm
The single row angular contact ball bearing 7209-B-TN is ideal for combined loads from the radial and axial directions. Main dimensions according to DIN 628-1.
Technical Data
| Inside (mm): | 45 |
| Outside (mm): | 85 |
| Width (mm): | 19 |
| Tolerance for inside (mm): | 0/-0,012 |
| Tolerance for outside (mm): | 0/-0,015 |
| Tolerance for width (mm): | 0/-0,12 |
| Contact Angle: | 40 |
| Rows Of Balls: | single row |
| Seal: | open |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Plastic |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Product weight: | 0,4300 kg |
Item number: 7209-B-TN
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 14.45
