Deep Groove Ball Bearing 6924 2RS / 61924 2RS 120x165x22 mm

Narrow, light and with very good spinning characteristics. The deep groove ball bearing 6924-2RS is narrow and can also be used with limited space. The low weight allows for very high speeds.

Technical Data

Inside (mm):	120
Outside (mm):	165
Width (mm):	22
Tolerance for inside (mm):	0/-0,02
Tolerance for outside (mm):	0/-0,025
Tolerance for width (mm):	0/-0,2
Rows Of Balls:	single row
Seal:	2RS
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Sealing material:	NBR
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Lifetime lubricated:	yes
Product weight:	1,4100 kg

Item number: 6924-2RS

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 46.14

pcs

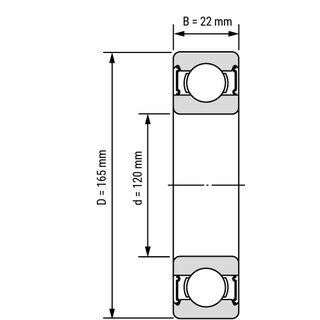

Technical Scribble
