Deep Groove Ball Bearing 6913 2RS / 61913 2RS 65x90x13 mm

Narrow, light and with very good spinning characteristics. The deep groove ball bearing 6913-2RS is narrow and can also be used with limited space. The low weight allows for very high speeds.

Technical Data

Inside (mm):	65
Outside (mm):	90
Width (mm):	13
Tolerance for inside (mm):	0/-0,015
Tolerance for outside (mm):	0/-0,015
Tolerance for width (mm):	0/-0,15
Rows Of Balls:	single row
Seal:	2RS
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Sealing material:	NBR
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Lifetime lubricated:	yes
Product weight:	0,2110 kg

Item number: 6913-2RS

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 13.18

pcs

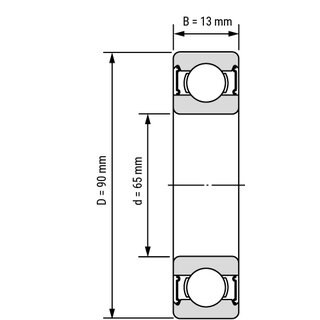

Technical Scribble

Technical Data

Inside (mm):	65
Outside (mm):	90
Width (mm):	13
Tolerance for inside (mm):	0/-0,015
Tolerance for outside (mm):	0/-0,015
Tolerance for width (mm):	0/-0,15
Rows Of Balls:	single row
Seal:	2RS
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Sealing material:	NBR
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Lifetime lubricated:	yes
Product weight:	0,2110 kg

Technical Scribble

Deep Groove Ball Bearing 6913 2RS / 61913 2RS 65x90x13 mm

Technical Data

Technical Scribble

Technical Data

SEND INQUIRY
