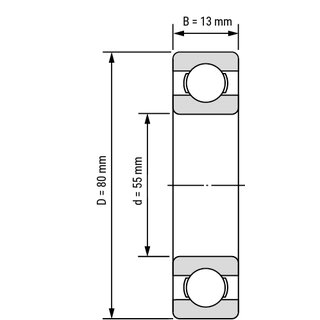

Deep Groove Ball Bearing 6911 open / 61911 open oiled 55x80x13 mm

Narrow, light and with very good spinning characteristics. The deep groove ball bearing 6911 is narrow and can also be used with limited space. The low weight allows for very high speeds.

Technical Data

Inside (mm):	55
Outside (mm):	80
Width (mm):	13
Tolerance for inside (mm):	0/-0,015
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,15
Rows Of Balls:	single row
Seal:	open
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	oiled
Magnetic:	yes
Product weight:	0,1850 kg

Item number: 6911-OIL

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 8.36

pcs
