Deep Groove Ball Bearing 6908 2RS C3 / 61908 2RS C3 40x62x12 mm

Narrow, light and with very good spinning characteristics. The deep groove ball bearing 6908-2RS-C3 is narrow and can also be used with limited space. The low weight allows for very high speeds.

Technical Data

Inside (mm):	40
Outside (mm):	62
Width (mm):	12
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	2RS
Internal Clearance:	C3 (increased clearance)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Sealing material:	NBR
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Lifetime lubricated:	yes
Product weight:	0,1120 kg

Item number: 6908-2RS-C3

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 4.53

pcs

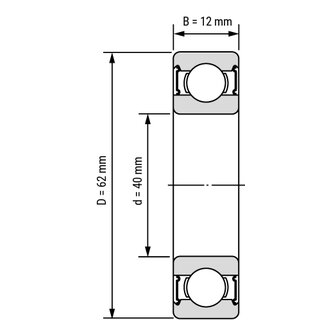

Technical Scribble
