Technical Scribble

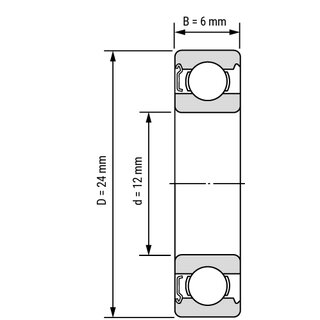

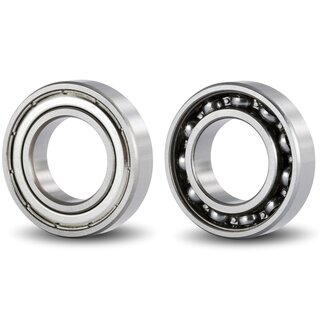

Deep Groove Ball Bearing 6901 Z (1-side gap sealed) / 61901 Z (1-side gap sealed) 12x24x6 mm
Narrow, light and with very good spinning characteristics. The deep groove ball bearing 6901-Z is narrow and can also be used with limited space. The low weight allows for very high speeds.
Technical Data
| Inside (mm): | 12 |
| Outside (mm): | 24 |
| Width (mm): | 6 |
| Tolerance for inside (mm): | 0/-0,008 |
| Tolerance for outside (mm): | 0/-0,009 |
| Tolerance for width (mm): | 0/-0,12 |
| Rows Of Balls: | single row |
| Seal: | Z |
| Internal Clearance: | CN (Standard) |
| Flange: | no |
| Slot & Snap Ring: | no |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Full Complement Ball Set: | no |
| Tolerance Class: | ABEC 1 / P0 |
| Type of lubrication: | greased |
| Magnetic: | yes |
| Product weight: | 0,0110 kg |
Item number: 6901-Z
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 1.13
pcs
