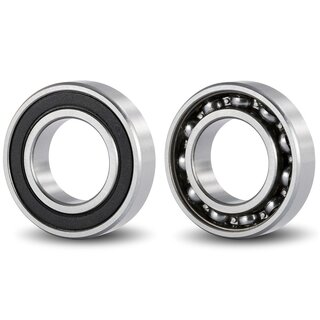

Deep Groove Ball Bearing 6901 RS / 61901 RS 12x24x6 mm

Narrow, light and with very good spinning characteristics. The deep groove ball bearing 6901-RS is narrow and can also be used with limited space. The low weight allows for very high speeds.

Technical Data

Inside (mm):	12
Outside (mm):	24
Width (mm):	6
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,009
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Seal:	RS
Internal Clearance:	CN (Standard)
Flange:	no
Slot & Snap Ring:	no
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Full Complement Ball Set:	no
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Product weight:	0,0110 kg

Item number: 6901-RS

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 1.13

pcs

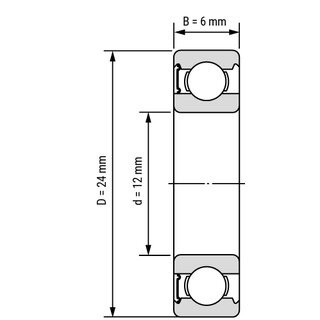

Technical Scribble
