Tapered Roller Bearing 32252 260x480x137 mm

The tapered roller bearing 32252 has tapered rollers as rolling elements and is suitable for very high combined loads from the radial and axial directions. Main dimensions according to DIN 720.

Technical Data

Inside (mm):	260
Outside (mm):	480
Bearing Width (mm):	137
Width Outer Ring (mm):	106
Width Inner Ring (mm):	130
Tolerance for inside (mm):	0/-0,035
Tolerance for outside (mm):	0/-0,045
Tolerance for width of the bearing (mm):	0,35/-0,25
Tolerance For Width Outer Ring (mm):	0/-0,35
Tolerance For Width Inner Ring (mm):	0/-0,35
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Rolling bearing steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	102,0000 kg

Item number: 32252

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 812.85

pcs

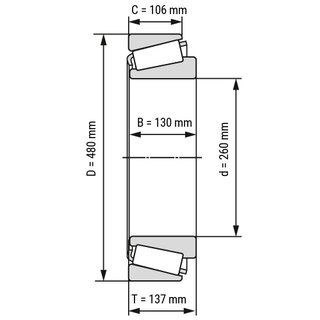

Technical Scribble
