Tapered Roller Bearing 32248 240x440x127 mm
The tapered roller bearing 32248 has tapered rollers as rolling elements and is suitable for very high combined loads from the radial and axial directions. Main dimensions according to DIN 720.

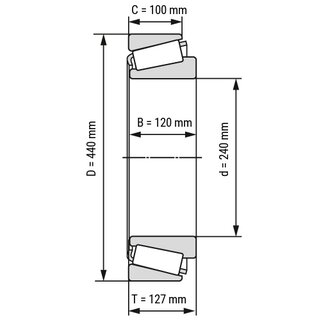

Technical Data
| Inside (mm): | 240 |
| Outside (mm): | 440 |
| Bearing Width (mm): | 127 |
| Width Outer Ring (mm): | 100 |
| Width Inner Ring (mm): | 120 |
| Tolerance for inside (mm): | 0/-0,03 |
| Tolerance for outside (mm): | 0/-0,045 |
| Tolerance for width of the bearing (mm): | 0,35/-0,25 |
| Tolerance For Width Outer Ring (mm): | 0/-0,3 |
| Tolerance For Width Inner Ring (mm): | 0/-0,3 |
| Seal: | open |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Rolling bearing steel |
| Tolerance Class: | ABEC 1 / P0 |
| Magnetic: | yes |
| Product weight: | 76,4000 kg |
Item number: 32248
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 678.17
