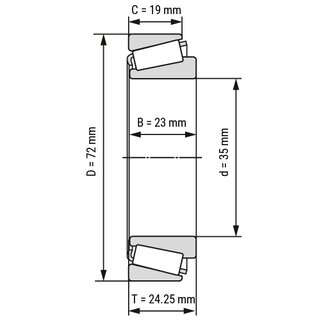

Tapered Roller Bearing 32207 35x72x24.25 mm

The tapered roller bearing 32207 has tapered rollers as rolling elements and is suitable for very high combined loads from the radial and axial directions. Main dimensions according to DIN 720.

Technical Data

Inside (mm):	35
Outside (mm):	72
Bearing Width (mm):	24.25
Width Outer Ring (mm):	19
Width Inner Ring (mm):	23
Tolerance for inside (mm):	0/-0,012
Tolerance for outside (mm):	0/-0,016
Tolerance for width of the bearing (mm):	0,2/0
Tolerance For Width Outer Ring (mm):	0/-0,12
Tolerance For Width Inner Ring (mm):	0/-0,12
Seal:	open
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Rolling bearing steel
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Product weight:	0,4530 kg

Item number: 32207

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 6.05

pcs
