Spherical Roller Bearing 22236 CA K (tapered) W33 180x320x86 mm

With the swiveling inner ring, the spherical roller bearing 22236-CA-K-W33 offers excellent alignment error compensation. It has two rings with barrel-shaped rollers as rolling elements and can absorb very high radial and also axial forces. Main dimensions according to DIN 635-2.

Technical Data

Inside (mm):	180
Outside (mm):	320
Width (mm):	86
Tolerance for inside (mm):	0/-0,025
Tolerance for outside (mm):	0/-0,04
Tolerance for width (mm):	0/-0,25
Bore:	tapered (K)
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Brass
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Permissible angular misalignment:	1.5
Product weight:	28,5000 kg

Item number: 22236-CA-K-W33

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 598.17

pcs

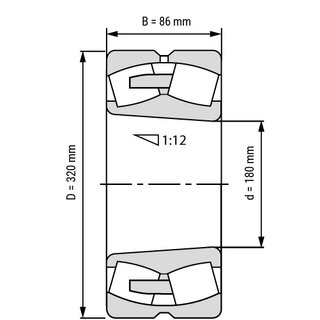

Technical Scribble

Technical Data

Inside (mm):	180
Outside (mm):	320
Width (mm):	86
Tolerance for inside (mm):	0/-0,025
Tolerance for outside (mm):	0/-0,04
Tolerance for width (mm):	0/-0,25
Bore:	tapered (K)
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Brass
Tolerance Class:	ABEC 1 / P0
Magnetic:	yes
Permissible angular misalignment:	1.5
Product weight:	28,5000 kg
