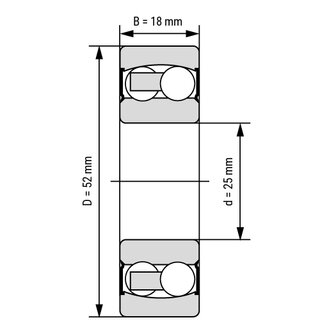

Self-Aligning Ball Bearing 2205 2RS TN 25x52x18 mm

With the swiveling inner ring, the self aligning ball bearing 2205-2RS-TN offers excellent alignment error compensation. With the two rings of barrel-shaped rollers, it can absorb high radial forces. Main dimensions according to DIN 630.

Technical Data

Inside (mm):	25
Outside (mm):	52
Width (mm):	18
Tolerance for inside (mm):	0/-0,01
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	double row
Bore:	cylindrical
Extended Inner Ring:	nein
Seal:	2RS
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Type of lubrication:	greased
Magnetic:	yes
Lifetime lubricated:	yes
Permissible angular misalignment:	1.5
Product weight:	0,1580 kg

Item number: 2205-2RS-TN

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 7.25

pcs
