Axial Angular Ball Bearing ZKLF1560-2RS-P4 15x60x25 mm

The axial angular contact ball bearing ZKLF1560-2RS-P4 is a double-row precision bearing. It is mainly used for the bearing arrangements of screw drives. Due to simple adjacent construction and low installation costs, it is extremely economical.

Technical Data

Inside (mm):	15
Outside (mm):	60
Width (mm):	25
Tolerance for inside (mm):	0/-0,005
Tolerance for outside (mm):	0/-0,010
Tolerance for width (mm):	0/-0,25
Rows Of Balls:	double row
Seal:	2RS
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Plastic
Tolerance Class:	ABEC 7 / P4
Magnetic:	yes
Product weight:	0,4300 kg

Item number: ZKLF1560-2RS-P4

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 180.90

pcs

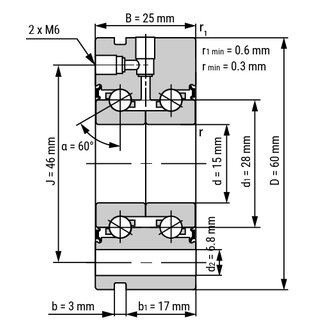

Technical Scribble
