Flange Housing Unit WP-SSBF206 - Shaft 30 mm

The flange housing unit WP-SSBF206 is suitable for very high radial loads and for mounting in various applications. It is hygienic and corrosion resistant with its plastic housing and stainless steel bearing insert. It has a waterproof rubber seal on the back. In addition, an open or closed clip-on plastic cap can be ordered.

Technical Data

Inside (mm):	30
Tolerance for inside (mm):	0,018/0
Shaft Fastening:	Grub Screws
Housing Type:	Flange
Ring Material:	Stainless Steel
Rolling Element Material:	Stainless Steel
Cage Material:	Stainless Steel
Housing Material:	Plastic
Number of Mounting Holes:	4
Lifetime lubricated:	yes
Housing Colour:	Black
Tolerance for width Bi (mm):	0/-0,12
Product weight:	0,5600 kg

Item number: WP-SSBF206

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 86.64

pcs

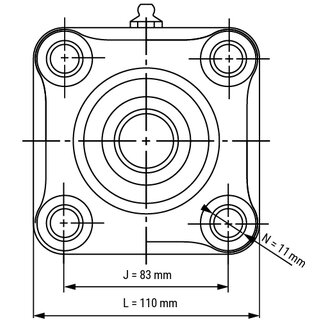

Technical Scribble

Technical Data

Inside (mm):	30
Tolerance for inside (mm):	0,018/0
Shaft Fastening:	Grub Screws
Housing Type:	Flange
Ring Material:	Stainless Steel
Rolling Element Material:	Stainless Steel
Cage Material:	Stainless Steel
Housing Material:	Plastic
Number of Mounting Holes:	4
Lifetime lubricated:	yes
Housing Colour:	Black
Tolerance for width Bi (mm):	0/-0,12
Product weight:	0,5600 kg

Technical Scribble

Flange Housing Unit WP-SSBF206 - Shaft 30 mm

Technical Data

Technical Scribble

Technical Data

SEND INQUIRY
