Track Roller with W-groove profile W3 12x45.72x15.88 mm

The track roller with profiled outer ring W3 has a W-shaped outer ring profile. Due to the V-shaped groove it can can roll on a round or v-shaped track. It is based on a double row angular contact ball bearing and supports high radial and axial loads.

Technical Data

Inside (mm):	12
Outside (mm):	45.72
Width (mm):	15.88
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,011
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	double row
Seal:	ZZ
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Profiled Outer Ring:	yes
Profile Form:	W
Magnetic:	yes
Product weight:	0,1300 kg

Item number: W3

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 12.60

pcs

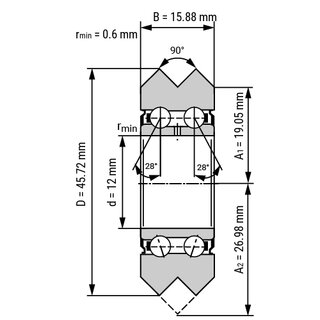

Technical Scribble

Technical Data

Inside (mm):	12
Outside (mm):	45.72
Width (mm):	15.88
Tolerance for inside (mm):	0/-0,008
Tolerance for outside (mm):	0/-0,011
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	double row
Seal:	ZZ
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Plastic
Tolerance Class:	ABEC 1 / P0
Profiled Outer Ring:	yes
Profile Form:	W
Magnetic:	yes
Product weight:	0,1300 kg

Technical Scribble

Track Roller with W-groove profile W3 12x45.72x15.88 mm
