Radial Insert Ball Bearing Housing Unit UKT215 - Shaft: 65 mm

The radial insert ball bearing housing unit UKT215 is suitable for high radial loads. The housing can be moved and is therefore easy to install. It is particularly robust with its gray cast iron housing.

Technical Data

Inside (mm):	65
Tolerance for inside (mm):	0,03/0
Width Radial Insert Bearing To The Slot e (mm):	151
Width Radial Insert Bearing a (mm):	167
Shaft Fastening:	Adapter Sleeve
Housing Type:	Radial Insert Ball Bearing
Bearing No.:	UK 215
Housing No.:	T 215
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Housing Material:	Cast Iron
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	350
Number of Mounting Holes:	1
Product weight:	7,8000 kg

Item number: UKT215

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 118.10

pcs

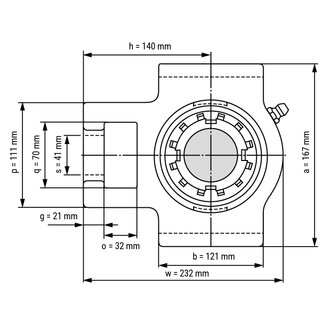

Technical Scribble
