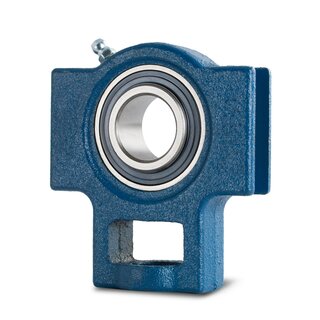

Radial Insert Ball Bearing Housing Unit UKT208 - Shaft: 35 mm

The radial insert ball bearing housing unit UKT208 is suitable for high radial loads. The housing can be moved and is therefore easy to install. It is particularly robust with its gray cast iron housing.

Technical Data

Inside (mm):	35
Tolerance for inside (mm):	0,025/0
Width Radial Insert Bearing To The Slot e (mm):	102
Width Radial Insert Bearing a (mm):	114
Shaft Fastening:	Adapter Sleeve
Housing Type:	Radial Insert Ball Bearing
Bearing No.:	UK 208
Housing No.:	T 208
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Housing Material:	Cast Iron
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	50
Number of Mounting Holes:	1
Product weight:	2,5000 kg

Item number: UKT208

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 37.67

pcs

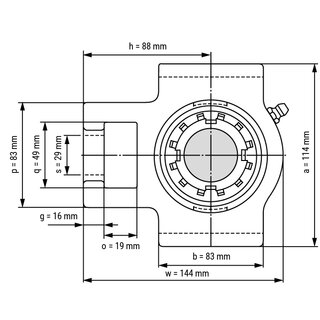

Technical Scribble

Technical Data

Inside (mm):	35
Tolerance for inside (mm):	0,025/0
Width Radial Insert Bearing To The Slot e (mm):	102
Width Radial Insert Bearing a (mm):	114
Shaft Fastening:	Adapter Sleeve
Housing Type:	Radial Insert Ball Bearing
Bearing No.:	UK 208
Housing No.:	T 208
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Housing Material:	Cast Iron
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	50
Number of Mounting Holes:	1
Product weight:	2,5000 kg

Technical Scribble
