Pillow Block Housing Unit with Adapter Sleeve UKP315+H2315 - Shaft: 65 mm

The pillow block bearing UKP315+H2315 is suitable for high radial loads and is particularly robust with its gray cast iron housing. The adapter sleeve required for mounting the bearing insert is included.

Technical Data

Inside (mm):	65
Tolerance for inside (mm):	0,03/0
Shaft Fastening:	Adapter Sleeve
Housing Type:	Plummer Block
Bearing No.:	UK 315
Housing No.:	P 315
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Housing Material:	Cast Iron
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	350
Number of Mounting Holes:	2
Product weight:	15,0000 kg

Item number: UKP315+H2315

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 220.07

pcs

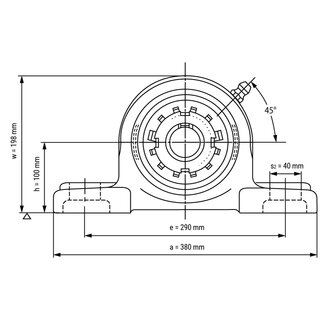

Technical Scribble

Technical Data

Inside (mm):	65
Tolerance for inside (mm):	0,03/0
Shaft Fastening:	Adapter Sleeve
Housing Type:	Plummer Block
Bearing No.:	UK 315
Housing No.:	P 315
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Housing Material:	Cast Iron
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	350
Number of Mounting Holes:	2
Product weight:	15,0000 kg

Technical Scribble

Pillow Block Housing Unit with Adapter Sleeve UKP315+H2315 - Shaft: 65 mm

Technical Data

Technical Scribble

Technical Data

SEND INQUIRY
