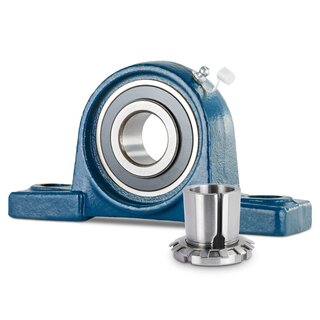

Pillow Block Housing Unit with Adapter Sleeve UKP313+H2313 - Shaft: 60 mm

The pillow block bearing UKP313+H2313 is suitable for high radial loads and is particularly robust with its gray cast iron housing. The adapter sleeve required for mounting the bearing insert is included.

Technical Data

Inside (mm):	60
Tolerance for inside (mm):	0,03/0
Shaft Fastening:	Adapter Sleeve
Housing Type:	Plummer Block
Bearing No.:	UK 313
Housing No.:	P 313
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Housing Material:	Cast Iron
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	150
Number of Mounting Holes:	2
Product weight:	10,0000 kg

Item number: UKP313+H2313

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 155.34

pcs

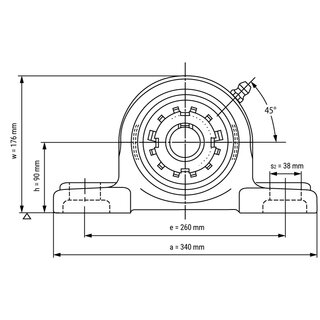

Technical Scribble

Technical Data

Inside (mm):	60
Tolerance for inside (mm):	0,03/0
Shaft Fastening:	Adapter Sleeve
Housing Type:	Plummer Block
Bearing No.:	UK 313
Housing No.:	P 313
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Housing Material:	Cast Iron
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	150
Number of Mounting Holes:	2
Product weight:	10,0000 kg
