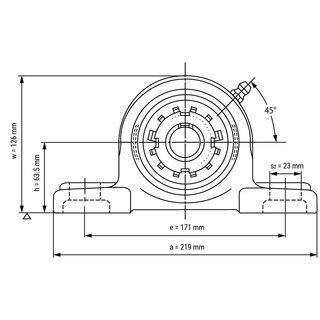

Pillow Block Housing Unit with Adapter Sleeve UKP211+H2311 - Shaft: 50 mm

The pillow block bearing UKP211+H2311 is suitable for high radial loads and is particularly robust with its gray cast iron housing. The adapter sleeve required for mounting the bearing insert is included.

Technical Data

Inside (mm):	50
Tolerance for inside (mm):	0,025/0
Shaft Fastening:	Adapter Sleeve
Housing Type:	Plummer Block
Bearing No.:	UK 211
Housing No.:	P 211
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Housing Material:	Cast Iron
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	95
Number of Mounting Holes:	2
Product weight:	3,6000 kg

Item number: UKP211+H2311

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 38.44

pcs
