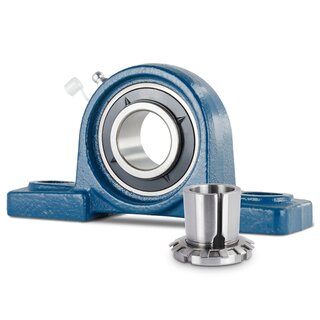

Pillow Block Housing Unit with Adapter Sleeve UKP209+H2309 - Shaft: 40 mm

The pillow block bearing UKP209+H2309 is suitable for high radial loads and is particularly robust with its gray cast iron housing. The adapter sleeve required for mounting the bearing insert is included.

Technical Data

Inside (mm):	40
Tolerance for inside (mm):	0,025/0
Shaft Fastening:	Adapter Sleeve
Housing Type:	Plummer Block
Bearing No.:	UK 209
Housing No.:	P 209
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Housing Material:	Cast Iron
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	60
Number of Mounting Holes:	2
Product weight:	2,4000 kg

Item number: UKP209+H2309

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 26.36

pcs

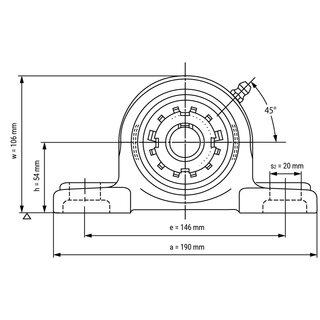

Technical Scribble

Technical Data

Inside (mm):	40
Tolerance for inside (mm):	0,025/0
Shaft Fastening:	Adapter Sleeve
Housing Type:	Plummer Block
Bearing No.:	UK 209
Housing No.:	P 209
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Housing Material:	Cast Iron
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	60
Number of Mounting Holes:	2
Product weight:	2,4000 kg
