Flange Bearing / Flange Housing Unit with Adapter Sleeve UKFL216+H2316 - Shaft: 70 mm

The flange bearing UKFL216+H2316 is suitable for high radial loads and installations in various scenarios. It is particularly robust with its gray cast iron housing. The adapter sleeve required for mounting the bearing insert is included.

Technical Data

Inside (mm):	70
Tolerance for inside (mm):	0,03/0
Shaft Fastening:	Adapter Sleeve
Housing Type:	Flange
Bearing No.:	UK 216
Housing No.:	FL 216
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Housing Material:	Cast Iron
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	400
Number of Mounting Holes:	2
Product weight:	8,5000 kg

Item number: UKFL216+H2316

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 97.37

pcs

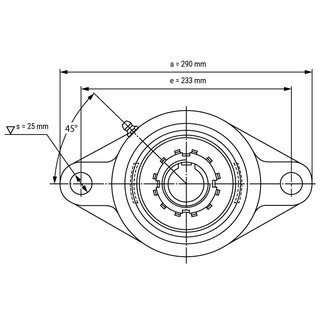

Technical Scribble

Technical Data

Inside (mm):	70
Tolerance for inside (mm):	0,03/0
Shaft Fastening:	Adapter Sleeve
Housing Type:	Flange
Bearing No.:	UK 216
Housing No.:	FL 216
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Housing Material:	Cast Iron
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	400
Number of Mounting Holes:	2
Product weight:	8,5000 kg
