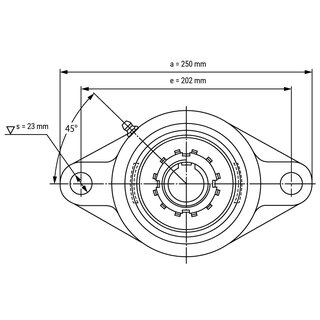

Flange Bearing / Flange Housing Unit with Adapter Sleeve UKFL212+H2312 - Shaft: 55 mm

The flange bearing UKFL212+H2312 is suitable for high radial loads and installations in various scenarios. It is particularly robust with its gray cast iron housing. The adapter sleeve required for mounting the bearing insert is included.

Technical Data

Inside (mm):	55
Tolerance for inside (mm):	0,03/0
Shaft Fastening:	Adapter Sleeve
Housing Type:	Flange
Bearing No.:	UK 212
Housing No.:	FL 212
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Housing Material:	Cast Iron
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	125
Number of Mounting Holes:	2
Product weight:	4,2000 kg

Item number: UKFL212+H2312

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 44.95

pcs

Technical Scribble

Technical Data

Inside (mm):	55
Tolerance for inside (mm):	0,03/0
Shaft Fastening:	Adapter Sleeve
Housing Type:	Flange
Bearing No.:	UK 212
Housing No.:	FL 212
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Housing Material:	Cast Iron
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	125
Number of Mounting Holes:	2
Product weight:	4,2000 kg
