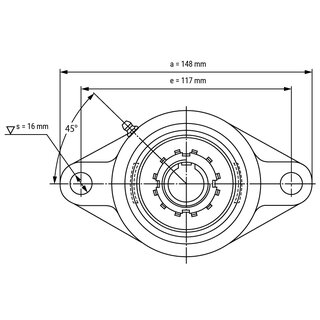

Technical Scribble
Flange Bearing / Flange Housing Unit with Adapter Sleeve UKFL206+H2306 - Shaft: 25 mm
The flange bearing UKFL206+H2306 is suitable for high radial loads and installations in various scenarios. It is particularly robust with its gray cast iron housing. The adapter sleeve required for mounting the bearing insert is included.
Technical Data
| Inside (mm): | 25 |
| Tolerance for inside (mm): | 0,021/0 |
| Shaft Fastening: | Adapter Sleeve |
| Housing Type: | Flange |
| Bearing No.: | UK 206 |
| Housing No.: | FL 206 |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Housing Material: | Cast Iron |
| Tolerance Class: | ABEC 1 / P0 |
| Recommended tightening torque for housing attachment (Nm): | 30 |
| Number of Mounting Holes: | 2 |
| Product weight: | 1,0000 kg |
Item number: UKFL206+H2306
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 16.43
pcs
