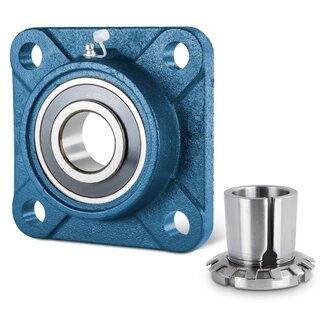

Flange Bearing / Flange Housing Unit with Adapter Sleeve UKF322+H2322 - Shaft: 100 mm

The flange bearing UKF322+H2322 is suitable for very high radial loads and for installation in various applications. It is particularly robust with its gray cast iron housing. The adapter sleeve required for mounting the bearing insert is included.

Technical Data

Inside (mm):	100
Tolerance for inside (mm):	0,035/0
Shaft Fastening:	Adapter Sleeve
Housing Type:	Flange
Bearing No.:	UK 322
Housing No.:	F 322
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Housing Material:	Cast Iron
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	1050
Number of Mounting Holes:	4
Product weight:	32,8000 kg

Item number: UKF322+H2322

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 434.94

pcs

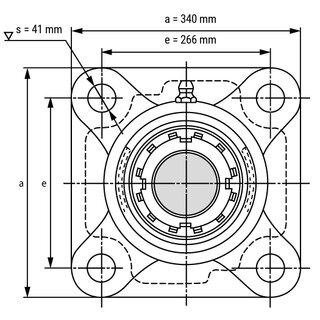

Technical Scribble

Technical Data

Inside (mm):	100
Tolerance for inside (mm):	0,035/0
Shaft Fastening:	Adapter Sleeve
Housing Type:	Flange
Bearing No.:	UK 322
Housing No.:	F 322
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Housing Material:	Cast Iron
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	1050
Number of Mounting Holes:	4
Product weight:	32,8000 kg
