Flange Bearing / Flange Housing Unit with Adapter Sleeve UKF218+H2318 - Shaft: 80 mm

The flange bearing UKF218+H2318 is suitable for very high radial loads and for installation in various applications. It is particularly robust with its gray cast iron housing. The adapter sleeve required for mounting the bearing insert is included.

Technical Data

Inside (mm):	80
Tolerance for inside (mm):	0,03/0
Shaft Fastening:	Adapter Sleeve
Housing Type:	Flange
Bearing No.:	UK 218
Housing No.:	F 218
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Housing Material:	Cast Iron
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	550
Number of Mounting Holes:	4
Product weight:	12,0000 kg

Item number: UKF218+H2318

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 118.10

pcs

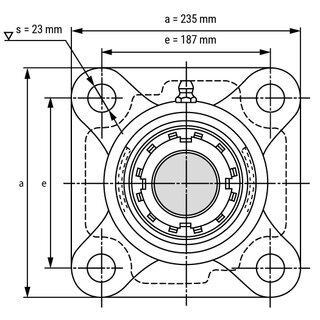

Technical Scribble
