Radial Insert Ball Bearing with Adapter Sleeve UK311 + H2311 - Shaft: 50 mm

The massive bearing insert UK311 comes in a set with the fitting adapter sleeve. It can be easily attached to the shaft or inserted in a housing and is suitable for high radial loads. Main dimensions according to DIN 626-1.

Technical Data

Inside (mm):	50
Outside (mm):	120
Bore (mm):	55
Width (mm):	34
Tolerance for inside (mm):	0,025/0
Tolerance for outside (mm):	0/-0,015
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Shaft Fastening:	Adapter Sleeve
Extended Inner Ring:	nein
Seal:	2-peace sealing system
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	95
Magnetic:	yes
Product weight:	2,0040 kg

Item number: UK311+H2311

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 52.26

pcs

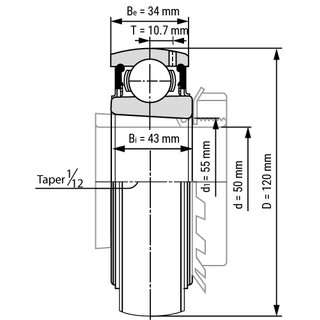

Technical Scribble
