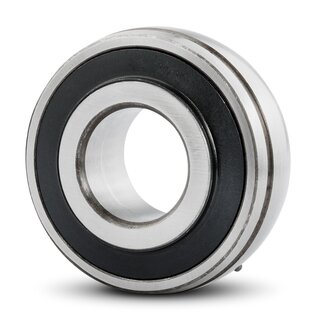

Radial Insert Ball Bearing UK309 - Shaft: 40 mm

The massive bearing insert UK309 can be easily attached to the shaft with the help of an adapter sleeve or inserted in a housing. It is suitable for high radial loads. Main dimensions according to DIN 626-1.

Technical Data

Inside (mm):	40
Outside (mm):	100
Bore (mm):	45
Width (mm):	30
Tolerance for inside (mm):	0,025/0
Tolerance for outside (mm):	0/-0,015
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Shaft Fastening:	Adapter Sleeve
Extended Inner Ring:	nein
Seal:	2-peace sealing system
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	60
Magnetic:	yes
Product weight:	1,3800 kg

Item number: UK309

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 22.82

pcs

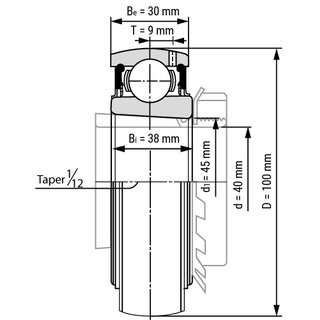

Technical Scribble

Technical Data

Inside (mm):	40
Outside (mm):	100
Bore (mm):	45
Width (mm):	30
Tolerance for inside (mm):	0,025/0
Tolerance for outside (mm):	0/-0,015
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Shaft Fastening:	Adapter Sleeve
Extended Inner Ring:	nein
Seal:	2-peace sealing system
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	60
Magnetic:	yes
Product weight:	1,3800 kg

Technical Scribble
