Radial Insert Ball Bearing with Adapter Sleeve UK307 + H2307 - Shaft: 30 mm

The massive bearing insert UK307 comes in a set with the fitting adapter sleeve. It can be easily attached to the shaft or inserted in a housing and is suitable for high radial loads. Main dimensions according to DIN 626-1.

Technical Data

Inside (mm):	30
Outside (mm):	80
Bore (mm):	35
Width (mm):	26
Tolerance for inside (mm):	0,021/0
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Shaft Fastening:	Adapter Sleeve
Extended Inner Ring:	nein
Seal:	2-peace sealing system
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	40
Magnetic:	yes
Product weight:	0,9000 kg

Item number: UK307+H2307

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 24.86

pcs

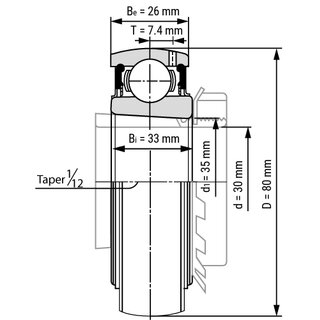

Technical Scribble

Technical Data

Inside (mm):	30
Outside (mm):	80
Bore (mm):	35
Width (mm):	26
Tolerance for inside (mm):	0,021/0
Tolerance for outside (mm):	0/-0,013
Tolerance for width (mm):	0/-0,12
Rows Of Balls:	single row
Shaft Fastening:	Adapter Sleeve
Extended Inner Ring:	nein
Seal:	2-peace sealing system
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	40
Magnetic:	yes
Product weight:	0,9000 kg
