Radial Insert Ball Bearing with Adapter Sleeve UK217 + H2317 - Shaft: 80 mm

The bearing insert UK217 comes in a set with the fitting adapter sleeve. It can be easily attached to the shaft or inserted in a housing and is suitable for radial loads. Main dimensions according to DIN 626-1.

Technical Data

Inside (mm):	75
Outside (mm):	150
Bore (mm):	85
Width (mm):	35
Tolerance for inside (mm):	0,03/0
Tolerance for outside (mm):	0/-0,018
Tolerance for width (mm):	0/-0,15
Rows Of Balls:	single row
Shaft Fastening:	Adapter Sleeve
Extended Inner Ring:	nein
Seal:	2-peace sealing system
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	450
Magnetic:	yes
Product weight:	5,1600 kg

Item number: UK217+H2317

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 82.30

pcs

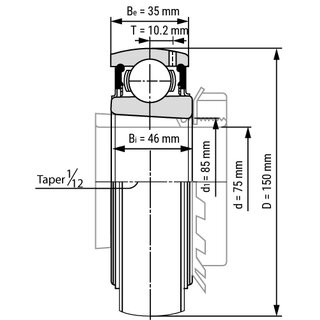

Technical Scribble
