Radial Insert Ball Bearing UK216 - Shaft: 75 mm

The bearing insert UK216 can be easily attached to the shaft with the help of an adapter sleeve or inserted in a housing. It is suitable for radial loads. Main dimensions according to DIN 626-1.

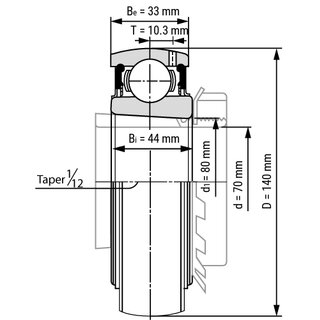

Technical Data

Inside (mm):	70
Outside (mm):	140
Bore (mm):	80
Width (mm):	33
Tolerance for inside (mm):	0,03/0
Tolerance for outside (mm):	0/-0,018
Tolerance for width (mm):	0/-0,15
Rows Of Balls:	single row
Shaft Fastening:	Adapter Sleeve
Extended Inner Ring:	nein
Seal:	2-peace sealing system
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	400
Magnetic:	yes
Product weight:	3,2100 kg

Item number: UK216

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 43.29

pcs

Technical Scribble

Technical Data

Inside (mm):	70
Outside (mm):	140
Bore (mm):	80
Width (mm):	33
Tolerance for inside (mm):	0,03/0
Tolerance for outside (mm):	0/-0,018
Tolerance for width (mm):	0/-0,15
Rows Of Balls:	single row
Shaft Fastening:	Adapter Sleeve
Extended Inner Ring:	nein
Seal:	2-peace sealing system
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	400
Magnetic:	yes
Product weight:	3,2100 kg
