Radial Insert Ball Bearing (Maintenance-Free) UEL211 - Shaft: 55 mm

The bearing insert UEL211 can be easily attached to the shaft with the aid of the eccentric ring or inserted in a housing. It is suitable for high radial loads, high speeds and is maintenance-free. Main dimensions according to DIN 626-1.

Technical Data

Inside (mm):	55
Outside (mm):	100
Width (mm):	27
Tolerance for inside (mm):	0,024/0
Tolerance for outside (mm):	0/-0,015
Tolerance for width (mm):	0/-0,15
Rows Of Balls:	single row
Shaft Fastening:	Eccentric Collar
Grub Screw:	M10
Extended Inner Ring:	both sides
Seal:	2-peace sealing system
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	22
Magnetic:	yes
Product weight:	1,3200 kg

Item number: UEL211

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 32.96

pcs

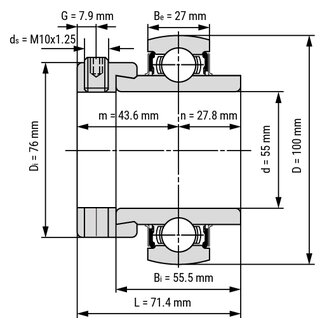

Technical Scribble

Technical Data

Inside (mm):	55
Outside (mm):	100
Width (mm):	27
Tolerance for inside (mm):	0,024/0
Tolerance for outside (mm):	0/-0,015
Tolerance for width (mm):	0/-0,15
Rows Of Balls:	single row
Shaft Fastening:	Eccentric Collar
Grub Screw:	M10
Extended Inner Ring:	both sides
Seal:	2-peace sealing system
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	22
Magnetic:	yes
Product weight:	1,3200 kg
