Radial Insert Ball Bearing Housing Unit UCT212 - Shaft: 60 mm

The radial insert ball bearing housing unit UCT212 is suitable for high radial loads. The housing can be moved and is therefore easy to install. It is particularly robust with its gray cast iron housing. The adapter sleeve required for mounting the bearing insert is included.

Technical Data

Inside (mm):	60
Tolerance for inside (mm):	0,024/0
Width Radial Insert Bearing To The Slot e (mm):	130
Width Radial Insert Bearing a (mm):	146
Shaft Fastening:	Grub Screws
Housing Type:	Radial Insert Ball Bearing
Grub Screw:	M10
Bearing No.:	UC 212
Housing No.:	T 212
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Housing Material:	Cast Iron
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	22
Number of Mounting Holes:	1
Tolerance for width Bi (mm):	0/-0,15
Product weight:	5,0000 kg

Item number: UCT212

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 30.27

pcs

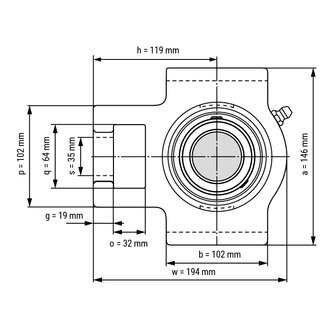

Technical Scribble

Technical Data

Inside (mm):	60
Tolerance for inside (mm):	0,024/0
Width Radial Insert Bearing To The Slot e (mm):	130
Width Radial Insert Bearing a (mm):	146
Shaft Fastening:	Grub Screws
Housing Type:	Radial Insert Ball Bearing
Grub Screw:	M10
Bearing No.:	UC 212
Housing No.:	T 212
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Housing Material:	Cast Iron
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	22
Number of Mounting Holes:	1
Tolerance for width Bi (mm):	0/-0,15
Product weight:	5,0000 kg

Technical Scribble
