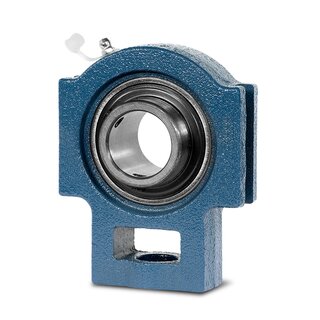

Radial Insert Ball Bearing Housing Unit UCT201 - Shaft: 12 mm

The radial insert ball bearing housing unit UCT201 is suitable for high radial loads. The housing can be moved and is therefore easy to install. It is particularly robust with its gray cast iron housing. The adapter sleeve required for mounting the bearing insert is included.

Technical Data

Inside (mm):	12
Tolerance for inside (mm):	0,015/0
Width Radial Insert Bearing To The Slot e (mm):	76
Width Radial Insert Bearing a (mm):	89
Shaft Fastening:	Grub Screws
Housing Type:	Radial Insert Ball Bearing
Grub Screw:	M6
Bearing No.:	UC 201
Housing No.:	T 204
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Housing Material:	Cast Iron
Tolerance Class:	ABEC 1 / P0
Number of Mounting Holes:	1
Tolerance for width Bi (mm):	0/-0,12
Product weight:	0,7900 kg

Item number: UCT201

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 7.27

pcs

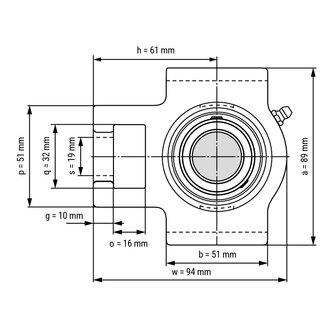

Technical Scribble

Technical Data

Inside (mm):	12
Tolerance for inside (mm):	0,015/0
Width Radial Insert Bearing To The Slot e (mm):	76
Width Radial Insert Bearing a (mm):	89
Shaft Fastening:	Grub Screws
Housing Type:	Radial Insert Ball Bearing
Grub Screw:	M6
Bearing No.:	UC 201
Housing No.:	T 204
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Housing Material:	Cast Iron
Tolerance Class:	ABEC 1 / P0
Number of Mounting Holes:	1
Tolerance for width Bi (mm):	0/-0,12
Product weight:	0,7900 kg
