Flange Bearing / Flange Housing Unit UCFL216 - Shaft: 80 mm

The flange bearing UCFL216 is suitable for high radial loads and for installation in various applications. It is particularly robust with its gray cast iron housing. The adapter sleeve required for mounting the bearing insert is included.

Technical Data

Inside (mm):	80
Tolerance for inside (mm):	0,024/0
Shaft Fastening:	Grub Screws
Housing Type:	Flange
Grub Screw:	M12
Bearing No.:	UC 216
Housing No.:	FL 216
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Housing Material:	Cast Iron
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	33
Number of Mounting Holes:	2
Tolerance for width Bi (mm):	0/-0,15
Product weight:	7,9000 kg

Item number: UCFL216

If your demand is large, please contact us for quotation and delivery time.

Delivery time:3 to 7 business day

$ 62.04

pcs

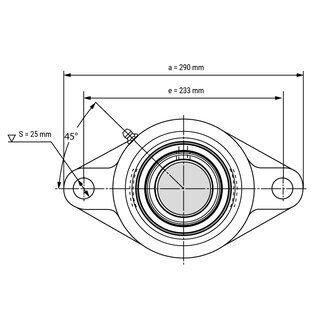

Technical Scribble

Technical Data

Inside (mm):	80
Tolerance for inside (mm):	0,024/0
Shaft Fastening:	Grub Screws
Housing Type:	Flange
Grub Screw:	M12
Bearing No.:	UC 216
Housing No.:	FL 216
Ring Material:	Rolling bearing steel
Rolling Element Material:	Rolling bearing steel
Cage Material:	Sheet Steel
Housing Material:	Cast Iron
Tolerance Class:	ABEC 1 / P0
Recommended tightening torque for housing attachment (Nm):	33
Number of Mounting Holes:	2
Tolerance for width Bi (mm):	0/-0,15
Product weight:	7,9000 kg
